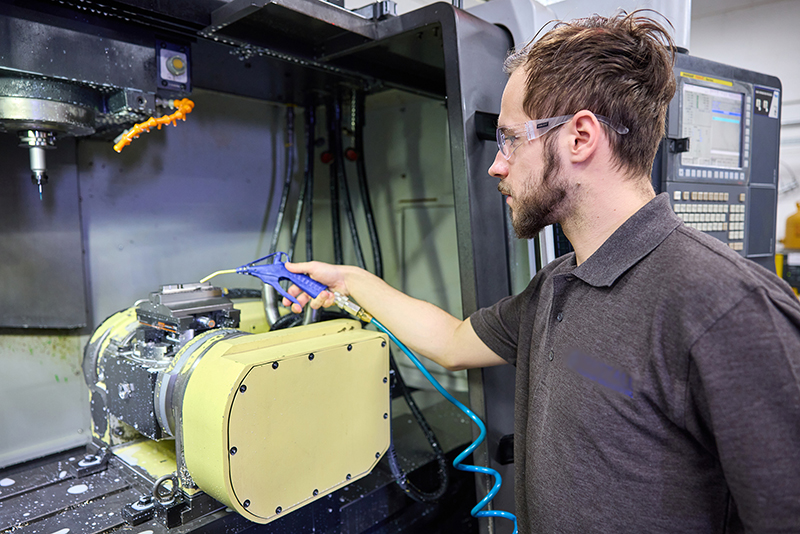

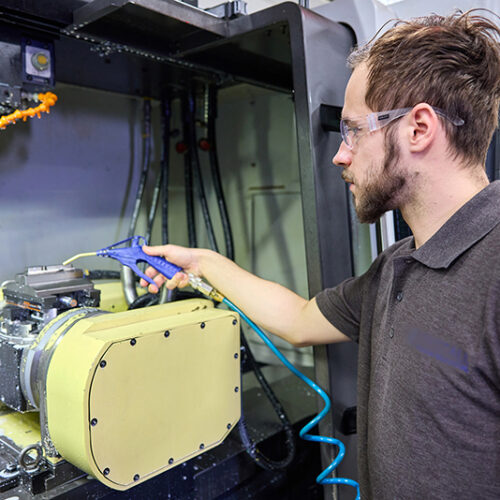

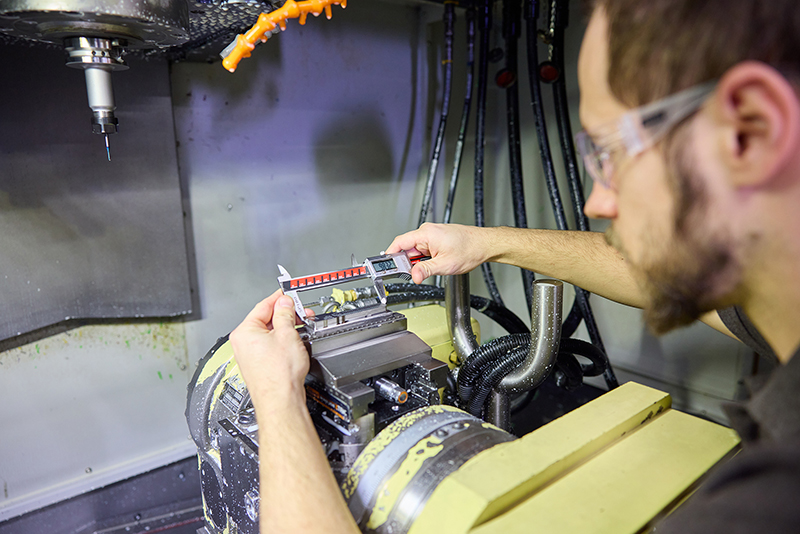

Offering 3 & 4th axis machining up to 1 Metre bed capacity. Our ethos is to continually invest in new technology, allowing us to machine complex components in many different materials to fine tolerances.

To compliment this we program off line using Feature-Cam & pre-set our tooling to become more competitive

If your components would benefit from 5 or more axis machining then please go to our CNC Turning Section.

Get In Touch!
CNC Milling
CNC Milling 2
CNC Milling product
CNC MILLING

Doosan Mynx 410 3 Axis

Doosan DNM 400 3 Axis

Bridgeport VMC 500XP/16 3 Axis

Doosan DNM 500 4 Axis

Bridgeport VMC 1000 XP2 4 Axis

CAPACITY

XYZ 500 x 500 x 400mm

XYZ 760 x 500 x 400mm

XYZ 500 x 500 x 400mm

XYZA 1000* x 500 x 500mm x 360º 4th Axis horizontal rotary Chuck.

Capacity XYZA 1000* x 500 x 500mm x 360º 4th Axis horizontal rotary Chuck.

(* Denotes reduced capacity due to 4th Axis unit)

CNC TURNING

Doosan Lynx 220LYC Mill/Turn

Doosan Puma 2600LY Mill/Turn

Doosan Puma 2600Y Mill/Turn

Star SR 20 – Sliding Head Lathe with live Tooling & Deep Hole drilling

Star SB 16E – Sliding Head Lathe with live Tooling

CAPACITY

200 mm dia. 500mm length, Y Axis 105mm (± 52.5mm) 65mm spindle bore.

200 mm dia. 1200mm length, Y Axis 105mm (± 52.5mm) 76mm spindle bore.

200 mm dia. 700mm length, Y Axis 105mm (± 52.5mm) 76mm spindle bore.

22.2mm dia. spindle capacity. 3 Metre bar feed

16mm dia. Spindle capacity. 3 Metre bar feed.

WIRE ERODING

2 x Agie Chamillies 240cc Robofil

1 x Sodick SLC 400G 4th axis machine.

MANUAL MILLING

2 x Bridgeport J2 Turret Mill

Harrison VS330TR Centre Lathe

DSG 1609 50” Centre Lathe

Jones & Shipman Surface Grinding

Heat Insertion

CAPACITY

XYZ 700 x 200 x 500 approx.

200 mm dia. x 600mm between centres.

400mm dia x 1200mm between centres.

XYZ 600 x 200 x 200mm

10mm Dia.

WELDING

Tig

Rofin Laser

CAPACITY

Certified to B.S 4872 PT1 1982 Test 2

Parts up to 200mm Sq.

FINISHING

Ultra-sonic Cleaning Tank

Electro polishing

Passivation – Citric Acid dip tank

Laser Marking

2x Guyson Bead Blast cabinets

6x Polishing Spindles

Ceramic bead deburring / rumbling unit.

Bar Coded packaging

Delivery & Collection service available

CAPACITY

400 x 400 x 300mm

700 x 400 x 300mm

400 x 400 x 300mm

Marking area 110mm Square
